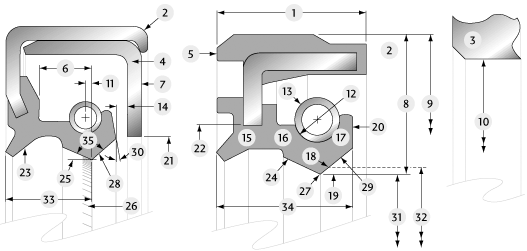

| Finding:
|
1 |
Seal Width |
19 |
Inside Lip Angle |
|
2 |
Metal Case (Outer) |
20 |
Toe Face |
|
3 |
Housing |
21 |
Inside Case Inner Diameter |
|
4 |
Inner Case |
22 |
Outer Case Inner Diameter |
|
5 |
Outside Face |
23 |
Auxiliary (Dust) Lip |
|
6 |
Lip Length |
24 |
Outside Lip Surface |
|
7 |
Inside Face |
25 |
Outside Lip Angle |
|
8 |
Radial Wall Dimension |
26 |
Rib (Helix) |
|
9 |
Seal Outer Diameter |
27 |
Contact Line |
|
10 |
Housing Bore Diameter |
28 |
Static Lip |
|
11 |
Spring Position (R-Value) |
29 |
Inside Lip Surface |
|
12 |
Spring Groove |
30 |
Molded Toe Angle |
|
13 |
Garter Spring |
31 |
Spring Set Lip Diameter |
|
14 |
Axial Clearance |
32 |
Free Lip(Unsprung) Diameter |
|
15 |
Heel Section |
33 |
Contact Line Height |
|
16 |
Flex Section |
34 |
Lip Height |
|
17 |
Spring Retainer Lip |
35 |
Lip Angle |
|
18 |
Head Section |
|
|
| Item name | Oil seals |
| Size | Customized/Standard and nonstandard |
| Brand name | NO |
| Material | NBR, Viton, ACM |
| Temperature | NBR (-40-120C), ACM (-30-180C), Viton (-24-300C) |
| Color | Black, Red, Green, Brown |
| Package | Polybag & carton. For large qyt, use pallet |
| Application | Automobile, agricultural machinery, trucks,or other euquipment |
| OEM/ODM | Yes |
| Types | TA, TB, TC, TZ, TCY, TC4, DCY, TC2Y, TB2Y, TCR, TCL, SC, VC, KC, TL, etc |
